Interface the training loop logs scalars/histograms through. Concrete writers (TensorBoard event format, W&B, CSV, ...) implement this; the training loop and Phase 4 validation harness only ever see MetricsSink. More...

#include <metrics_sink.hpp>

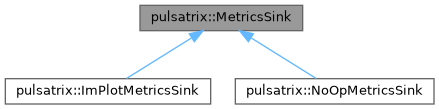

Inheritance diagram for pulsatrix::MetricsSink:

[legend]

Public Member Functions
virtual	~MetricsSink ()=default

virtual void	log_scalar (const std::string &tag, double value, int step)=0
	Logs a scalar value (e.g. loss, accuracy).

virtual void	log_histogram (const std::string &tag, const Tensor &values, int step)=0
	Logs a distribution of values (e.g. a weight tensor's values).

Detailed Description

Interface the training loop logs scalars/histograms through. Concrete writers (TensorBoard event format, W&B, CSV, ...) implement this; the training loop and Phase 4 validation harness only ever see MetricsSink.

Note: A concrete production writer is explicit charter out-of-scope for this project – NoOpMetricsSink below is the charter's stated minimum ("a no-op or stdout-printing sink is sufficient" to prove the interface is wired correctly).

Constructor & Destructor Documentation

◆ ~MetricsSink()

virtual pulsatrix::MetricsSink::~MetricsSink ( )

virtualdefault

Member Function Documentation

◆ log_histogram()

virtual void pulsatrix::MetricsSink::log_histogram	(	const std::string &	tag,
		const Tensor &	values,
		int	step
	)

pure virtual

Logs a distribution of values (e.g. a weight tensor's values).

Parameters

tag	Metric name.
values	Values to log.
step	Training step this snapshot corresponds to.

Implemented in pulsatrix::NoOpMetricsSink, and pulsatrix::ImPlotMetricsSink.

◆ log_scalar()

virtual void pulsatrix::MetricsSink::log_scalar	(	const std::string &	tag,
		double	value,
		int	step
	)
