pulsatrix::Environment Class Reference

Base class for every RL environment (CartPoleEnv, and whatever later phases add). More...

#include <environment.hpp>

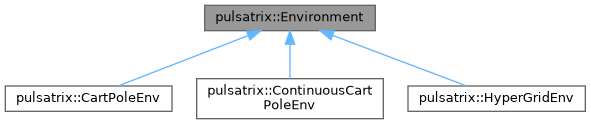

Inheritance diagram for pulsatrix::Environment:

Public Member Functions
virtual	~Environment ()=default
virtual Tensor	reset ()=0
	Starts a new episode from an implementation-chosen initial state.
virtual Tensor	reset (const Tensor &initial_state)=0
	Starts a new episode from an exact caller-supplied initial state.
virtual StepResult	step (const Tensor &action)=0
	Advances the environment one timestep under the given action.
virtual int64_t	observation_dim () const =0
	Number of components in an observation vector.
virtual int64_t	action_dim () const =0
	The action space's size: the number of distinct actions when is_discrete(), otherwise the dimension of a continuous action vector.
virtual bool	is_discrete () const =0
	Whether action_dim() counts discrete choices (true) or vector components.

Detailed Description

Base class for every RL environment (CartPoleEnv, and whatever later phases add).

Note

Deliberately NOT a Module subclass. A Module is a differentiable, parameterized layer with an LRP rule and a gradient; an environment has no parameters, no gradient, and no relevance to propagate. Forcing the two together would put a pure-virtual propagate_relevance() on a type for which the concept is undefined – exactly the "no default rule" failure mode module.hpp's charter note rules out. Environment/Agent are therefore a new, independent interface family.

Gymnasium-API-shaped on purpose (campaign Risk Register mitigation): reset/step, reward, done. There is no Python dependency here, but a future pybind11 binding should be able to wrap this in a gymnasium.Env with minimal adaptation rather than a translation layer.

Observations are always shape (1, observation_dim()) – this codebase's established always-batched convention (SinusoidalTimestepEmbedding's own (1, D) decision), so an observation feeds straight into any Module::forward() without a reshape.

Actions are always a Tensor, including for discrete action spaces, where the action is a shape-(1,1) Tensor holding the action index as a float. is_discrete() tells a caller which interpretation applies. This keeps the "everything is a Tensor" uniformity the rest of the codebase already has.

Constructor & Destructor Documentation

~Environment()

virtual pulsatrix::Environment::~Environment ( )

virtualdefault

Member Function Documentation

action_dim()

virtual int64_t pulsatrix::Environment::action_dim ( ) const

pure virtual

The action space's size: the number of distinct actions when is_discrete(), otherwise the dimension of a continuous action vector.

Implemented in pulsatrix::CartPoleEnv, pulsatrix::ContinuousCartPoleEnv, and pulsatrix::HyperGridEnv.

is_discrete()

virtual bool pulsatrix::Environment::is_discrete ( ) const

pure virtual

Whether action_dim() counts discrete choices (true) or vector components.

Implemented in pulsatrix::CartPoleEnv, pulsatrix::ContinuousCartPoleEnv, and pulsatrix::HyperGridEnv.

observation_dim()

virtual int64_t pulsatrix::Environment::observation_dim ( ) const

pure virtual

Number of components in an observation vector.

Implemented in pulsatrix::CartPoleEnv, pulsatrix::ContinuousCartPoleEnv, and pulsatrix::HyperGridEnv.

reset() [1/2]

virtual Tensor pulsatrix::Environment::reset ( )

pure virtual

Starts a new episode from an implementation-chosen initial state.

Returns

The initial observation, shape (1, observation_dim()).

Note

Any randomness is expected to come from an internal deterministic generator seeded at construction, not from a global/nondeterministic source – the same "randomness is a reproducible, caller-controlled input" convention as Reparameterize's caller-supplied epsilon and NoiseSchedule's epsilon/z.

Implemented in pulsatrix::CartPoleEnv, pulsatrix::ContinuousCartPoleEnv, and pulsatrix::HyperGridEnv.

reset() [2/2]

virtual Tensor pulsatrix::Environment::reset ( const Tensor &  initial_state )

pure virtual

Starts a new episode from an exact caller-supplied initial state.

Parameters

initial_state

State to start from, shape (1, observation_dim()).

Returns

The initial observation (the state just set), shape (1, observation_dim()).

Exceptions

std::invalid_argument

if initial_state's shape is wrong – external boundary.

Note

Pure-virtual rather than a base-class default that validates and delegates to a protected set_state hook: the mission leaves the choice to the implementer, and a pure-virtual pair keeps Environment a true pure interface with no state and no protected extension point, which is the simpler contract to subclass against. Each environment implements both overloads directly.

Implemented in pulsatrix::CartPoleEnv, pulsatrix::ContinuousCartPoleEnv, and pulsatrix::HyperGridEnv.

step()

virtual StepResult pulsatrix::Environment::step ( const Tensor &  action )

pure virtual

Advances the environment one timestep under the given action.

Parameters

action

The action to take, shape (1, 1) for a discrete environment.

Returns

The resulting observation, reward and done flag.

Exceptions

std::invalid_argument

if the action is malformed or the environment has not been reset yet (implementation-defined which preconditions apply).

Implemented in pulsatrix::CartPoleEnv, pulsatrix::ContinuousCartPoleEnv, and pulsatrix::HyperGridEnv.

---

The documentation for this class was generated from the following file:

• include/pulsatrix/environment.hpp
