Vendor-agnostic compute/memory backend. CPUBackend, CUDABackend (Phase 1.5), and HIPBackend (Phase 1.6) all implement this contract; Tensor and ComputationGraph depend only on this interface, never on a concrete backend's types. More...

#include <device_backend.hpp>

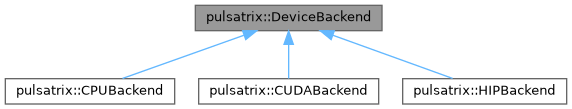

Inheritance diagram for pulsatrix::DeviceBackend:

[legend]

Public Member Functions
virtual	~DeviceBackend ()=default

virtual DeviceType	device () const noexcept=0
	Which device this backend's buffers reside on.

virtual void *	allocate (size_t bytes)=0
	Allocates a buffer of the given size.

virtual void	free (void *ptr) noexcept=0
	Frees a buffer previously returned by allocate(). Safe to call with nullptr.

virtual void	copy (void dst, const void src, size_t bytes, CopyDirection dir)=0
	Copies bytes between buffers.

virtual void	fill (void *ptr, float value, size_t n)=0
	Fills every element of a float buffer with a constant value.

virtual void	gemm (const float a, const float b, float *out, size_t m, size_t k, size_t n)=0
	Row-major matrix multiply: out = a * b.

virtual void	elementwise (ElementwiseOp op, const float in, float out, size_t n)=0
	Applies a unary elementwise operation to every element of a buffer.

virtual void	add (const float a, const float b, float *out, size_t n)=0
	Elementwise binary addition: out[i] = a[i] + b[i] for i in [0, n).

virtual void	mul (const float a, const float b, float *out, size_t n)=0
	Elementwise binary (Hadamard) multiplication: out[i] = a[i] * b[i] for i in [0, n).

virtual void	gemm_ex (const float a, bool transpose_a, const float b, bool transpose_b, float *out, size_t m, size_t k, size_t n, float beta)=0
	General row-major matrix multiply: out = op(A) * op(B) + beta * out.

virtual void	column_sums (const float in, float out, size_t rows, size_t cols, float beta)=0
	Per-column sum of a (rows x cols) row-major matrix: out[j] = beta*out[j] + sum_i in[i][j].

virtual void	add_row_vector (const float in, const float row, float *out, size_t rows, size_t cols)=0
	Broadcast row add: out[i][j] = in[i][j] + row[j] for a (rows x cols) matrix.

virtual void	elementwise_backward (ElementwiseOp op, const float x, const float grad_out, float *grad_in, size_t n)=0
	Activation backward: grad_in[i] = grad_out[i] * f'(x[i]), f = op, x = the forward input.

virtual void	axpby (float alpha, const float x, float beta, const float y, float *out, size_t n)=0
	out[i] = alpha * x[i] + beta * y[i]. out may alias x or y.

virtual float	dot (const float a, const float b, size_t n)=0
	Dot product sum_i a[i]*b[i], returned to the host.

virtual void	softmax_rows (const float in, float out, size_t rows, size_t cols)=0
	Row-wise softmax of a (rows x cols) matrix, max-subtracted. out may alias in.

virtual void	softmax_rows_backward (const float y, const float dy, float *dx, size_t rows, size_t cols)=0
	Softmax backward from its output y: dx[i][j] = y[i][j] * (dy[i][j] - sum_k y[i][k]*dy[i][k]).

virtual void	logsumexp_rows (const float in, float out, size_t rows, size_t cols)=0
	Per-row log-sum-exp, max-subtracted: out[i] = log sum_j exp(in[i][j]).

virtual void	adam_step (float param, const float grad, float m, float v, size_t n, float lr, float beta1, float beta2, float eps, float bias_correction1, float bias_correction2)=0
	One fused Adam update over n parameters.

virtual float	sum (const float *in, size_t n)=0
	sum_i in[i], returned to the host. Same reduction order as dot(). Synchronizes.

virtual void	dropout_forward (const float in, float out, float *mask, size_t n, float p, float scale, uint64_t seed, uint64_t offset)=0
	Inverted dropout with a counter-based RNG: element i is dropped iff uniform(seed, offset + i) < p; kept elements are scaled by scale.

virtual void	bce_with_logits (const float logits, const float target, float *out, size_t n)=0
	Per-element binary cross-entropy with logits: out[i] = max(x, 0) - x*y + log1p(exp(-\|x\|)), x = logits[i], y = target[i].

virtual void	bce_with_logits_grad (const float logits, const float target, float *grad, size_t n, float scale)=0
	BCE-with-logits gradient: grad[i] = (sigmoid(x) - y) * scale, using the overflow-free sigmoid (exp(x) / (1 + exp(x)) for x < 0).

virtual void	layer_norm_forward (const float in, const float gamma, const float beta, float xhat, float out, float row_std, size_t rows, size_t cols, float eps)=0
	LayerNorm forward per row: xhat = (x - mean)/sqrt(var + eps), out = gamma*xhat + beta.

virtual void	layer_norm_backward (const float grad_out, const float gamma, const float xhat, const float row_std, float *grad_in, size_t rows, size_t cols)=0
	LayerNorm input gradient per row, from the cached xhat and per-row std.

virtual void	rms_norm_forward (const float in, const float gamma, float out, float row_rms, size_t rows, size_t cols, float eps)=0
	RMSNorm forward per row: out = gamma * x / sqrt(mean(x^2) + eps).

virtual void	rms_norm_backward (const float grad_out, const float gamma, const float in, const float row_rms, float grad_in, float gamma_terms, size_t rows, size_t cols)=0
	RMSNorm input gradient per row, plus gamma_terms[r][i] = grad_out * x / rms – the per-row contributions column_sums then reduces into gamma's gradient.

virtual void	rope_rotate (const float in, const float cos_table, const float sin_table, float out, size_t num_slices, size_t seq_len, size_t head_dim, bool inverse)=0
	Rotary position embedding over (num_slices, seq_len, head_dim) data.

virtual void	permute_0213 (const float in, float out, size_t d0, size_t d1, size_t d2, size_t d3)=0
	Swaps the middle two axes: in (d0, d1, d2, d3) -> out (d0, d2, d1, d3).

virtual void	gather_rows (const float table, const float indices, float *out, size_t count, size_t dim)=0
	out[i][:] = table[indices[i]][:] for count rows of width dim.

virtual void	scatter_add_rows (const float src, const float indices, float *table, size_t count, size_t dim)=0
	table[indices[i]][:] += src[i][:] for i = 0..count-1, in increasing i.

virtual void	tanh_gaussian_forward (const float mean, const float log_std, const float eps, float action, float std_cache, float log_prob, size_t rows, size_t cols, float stabilizer, double half_log_two_pi)=0
	TanhGaussianPolicy sampling per (rows, cols) row: action = tanh(mean + exp(log_std)*eps), std_cache = exp(log_std), log_prob[r] accumulated in double.

virtual void	tanh_gaussian_backward (const float action, const float std_cache, const float eps, const float grad_action, const float grad_log_prob, float grad_mean, float *grad_log_std, size_t n, float stabilizer)=0
	TanhGaussianPolicy gradients w.r.t. mean and log_std, per element.

virtual void	lrp_linear (const float x, const float w, const float z, const float r, float *r_in, size_t rows, size_t in_features, size_t out_features, float eps)=0
	LinearModule epsilon rule: r_in[n][i] = sum_j (x[n][i] w[i][j] / stab(z[n][j])) r[n][j].

virtual void	lrp_residual_split (const float a, const float b, const float r, float r_a, float *r_b, size_t n, float eps)=0
	Epsilon split of a residual sum y = a + b: r_a = (a / stab(y)) r, r_b = (b / stab(y)) r.

virtual void	lrp_bilinear_elementwise (const float a, const float b, const float r, float r_out, size_t n, float eps)=0
	Eq. 15 for an elementwise product c = a*b: r_out = (a b / (2c + eps sign c)) r (same for both).

virtual void	lrp_bilinear_matmul (const float a, const float b, const float o, const float r_o, float r_a, float r_b, size_t slices, size_t m, size_t p, size_t q, float eps, bool b_transposed)=0
	Eq. 15 for slices independent matmuls O = A @ B (A (M x P), B (P x Q), O and r_o (M x Q)).

virtual void	lrp_softmax_rows (const float x, const float y, const float r, float r_in, size_t rows, size_t cols)=0
	SoftmaxModule rule per row: r_in = x * (r - y * sum(r)).

virtual void	lrp_rope (const float x, const float y, const float r, const float cos_table, const float sin_table, float r_in, size_t slices, size_t seq_len, size_t head_dim, float eps)=0
	RoPEModule epsilon rule over (slices, seq_len, head_dim), tables as for rope_rotate.

virtual void	logic_pointwise (LogicOp op, int norm, const float a, const float b, const float g_or_r, const float y, float out_a, float out_b, size_t n, float eps)=0
	One elementwise pass of Conjunction/Disjunction for operands a, b.

virtual void	aggregator_forward (const float x, float mean_pow, float *out, size_t n, size_t cols, float p)=0
	AggregatorModule power mean over the leading axis of an (n, cols) input, per column.

virtual void	aggregator_backward (const float x, const float mean_pow, const float grad_out, float grad_in, size_t n, size_t cols, float p)=0
	AggregatorModule input gradient, per column.

virtual void	aggregator_lrp (const float x, const float mean_pow, const float r_out, float r_in, size_t n, size_t cols, float p, float eps)=0
	AggregatorModule epsilon rule, per column.

virtual void	im2col (const float in, float col, size_t n, size_t c, size_t h, size_t w, const ConvGeometry &geometry)=0
	Unfolds (n, c, h, w) into (n, ckhkw, out_hout_w) patches, with out_h = (h + 2pad_h - kh) / stride_h + 1 (likewise out_w). Taps that fall in the zero padding read 0.

virtual void	col2im_add (const float col, float out, size_t n, size_t c, size_t h, size_t w, const ConvGeometry &geometry)=0
	Folds (n, ckhkw, out_h*out_w) patches back, adding into out (n, c, h, w).

virtual void	add_channel_vector (const float in, const float vec, float *out, size_t n, size_t c, size_t inner)=0
	out[i][ch][k] = in[i][ch][k] + vec[ch] over (n, c, inner). out may alias in.

virtual void	lrp_conv (const float col, const float kernel, const float pre_bias, const float r, float *r_col, size_t n, size_t out_channels, size_t p, size_t q, float eps)=0
	Conv2D epsilon rule in patch space: r_col (n, p, q) from the cached patches, the kernel (out_channels, p) and the pre-bias outputs (n, out_channels, q).

virtual void	lrp_stabilized_divide (const float r, const float denom, const float gate, float out, size_t n, float eps, LrpGate gate_mode)=0
	Gated stabilized division, the one non-gemm step of the affine LRP rules: out[i] = passes(gate[i]) ? r[i] / (denom[i] + eps sign(denom[i])) : 0, sign(0) = +1.

virtual void	max_pool_forward (const float in, float out, float *argmax, size_t planes, size_t h, size_t w, size_t kh, size_t kw)=0
	Non-overlapping max pool over planes of (h, w); argmax = flat in-plane index (first max wins).

virtual void	max_unpool (const float src, const float argmax, float *dst, size_t planes, size_t h, size_t w, size_t kh, size_t kw)=0
	dst[plane][argmax] = src for every pooled element; dst must be zeroed by the caller.

virtual void	avg_pool_forward (const float in, float out, size_t planes, size_t h, size_t w, size_t kh, size_t kw)=0
	Non-overlapping average pool over planes of (h, w).

virtual void	avg_pool_backward (const float grad_out, float grad_in, size_t planes, size_t h, size_t w, size_t kh, size_t kw)=0
	Spreads grad_out / (kh*kw) over each window; grad_in must be zeroed by the caller.

virtual void	lrp_avg_pool (const float x, const float r, float *r_in, size_t planes, size_t h, size_t w, size_t kh, size_t kw, float eps)=0
	AvgPool2D epsilon rule; r_in must be zeroed by the caller.

virtual void	batch_norm_forward (const float in, const float gamma, const float beta, float xhat, float out, float channel_std, size_t n, size_t c, size_t spatial, float eps)=0
	BatchNorm over (n, spatial) per channel of (n, c, spatial) data.

virtual void	batch_norm_backward (const float grad_out, const float gamma, const float xhat, const float channel_std, float grad_in, float gamma_grad, float *beta_grad, size_t n, size_t c, size_t spatial)=0
	BatchNorm input gradient plus this call's gamma/beta gradients (overwritten, per channel).

virtual void	batch_norm_update_running (const float in, float running_mean, float *running_var, size_t n, size_t c, size_t spatial, float momentum)=0
	Folds this batch's per-channel mean and unbiased variance into the running ones (PyTorch's momentum rule; the variance is kept when a channel has one value). FND-5.

virtual void	batch_norm_eval_forward (const float in, const float gamma, const float beta, const float running_mean, const float running_var, float xhat, float out, float channel_std, size_t n, size_t c, size_t spatial, float eps)=0
	Eval-mode BatchNorm from the running statistics: a per-channel affine map. FND-5.

virtual void	batch_norm_eval_backward (const float grad_out, const float gamma, const float xhat, const float channel_std, float grad_in, float gamma_grad, float *beta_grad, size_t n, size_t c, size_t spatial)=0
	Eval-mode BatchNorm gradient: grad_out * gamma / std, plus gamma/beta gradients (overwritten, per channel). FND-5.

virtual void	group_norm_forward (const float in, const float gamma, const float beta, float xhat, float out, float group_std, size_t n, size_t c, size_t spatial, size_t num_groups, float eps)=0
	GroupNorm per (example, group) of (n, c, spatial) data; group_std is (n, num_groups).

virtual void	group_norm_backward (const float grad_out, const float gamma, const float xhat, const float group_std, float grad_in, float gamma_grad, float *beta_grad, size_t n, size_t c, size_t spatial, size_t num_groups)=0
	GroupNorm input gradient plus this call's gamma/beta gradients (overwritten, per channel).

virtual void	copy_2d (float dst, size_t dst_stride, const float src, size_t src_stride, size_t rows, size_t cols)=0
	Strided 2-D copy: rows of cols floats from src (row stride src_stride) to dst (row stride dst_stride) – e.g. one timestep of an (N, L, D) sequence.

virtual void	accumulate_rows (const float in, float out, size_t rows, size_t cols)=0
	out[j] += in[i][j] for i = 0..rows-1 in order, accumulating straight into out.

virtual void	recurrent_cell (RecurrentCellOp op, const RecurrentCellArgs &args, size_t n)=0
	One fused recurrent-cell pass over n elements (see RecurrentCellOp for slots).

virtual void	gru_lrp_hprev (const float h_prev, const float w_hn, const float hn, const float r_term_b, const float direct, float r_hprev, size_t rows, size_t hidden, float eps)=0
	GRU's R_hprev for (rows, hidden): the recurrent epsilon-rule sum through W_hn, with each element's direct term inserted where the original loop added it.

virtual void	ssm_pass (SsmPassOp op, const SsmPassArgs &args)=0
	One fused Mamba / RWKV / RetNet pass (see SsmPassOp for lanes and slots).

virtual void	rl_rows (RlRowOp op, const RlRowArgs &args)=0
	One fused RL loss / target / Polyak pass (see RlRowOp for lanes and slots).

virtual void	top_k_rows (const float in, float values, float *indices, size_t rows, size_t cols, size_t k, bool largest)=0
	Per row of a row-major (rows, cols) matrix: the k largest (or smallest) values in rank order into `values` (rows, k), and their column indices into `indices` (rows, k) as whole-number floats.

Detailed Description

Vendor-agnostic compute/memory backend. CPUBackend, CUDABackend (Phase 1.5), and HIPBackend (Phase 1.6) all implement this contract; Tensor and ComputationGraph depend only on this interface, never on a concrete backend's types.

Note: Every concrete implementation must honor identical numeric semantics and identical error behavior (throw on failure, never return null from allocate()) — this is the Liskov Substitution contract every DeviceBackend implementation is held to.

Constructor & Destructor Documentation

◆ ~DeviceBackend()

virtual pulsatrix::DeviceBackend::~DeviceBackend ( )

virtualdefault

Member Function Documentation

◆ accumulate_rows()

virtual void pulsatrix::DeviceBackend::accumulate_rows	(	const float *	in,
		float *	out,
		size_t	rows,
		size_t	cols
	)

pure virtual

out[j] += in[i][j] for i = 0..rows-1 in order, accumulating straight into out.

Note: Unlike column_sums(beta = 1), which adds a finished column sum to out, this adds row by row into the running value – the association the recurrent modules' bias gradients always used.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ adam_step()

virtual void pulsatrix::DeviceBackend::adam_step	(	float *	param,
		const float *	grad,
		float *	m,
		float *	v,
		size_t	n,
		float	lr,
		float	beta1,
		float	beta2,
		float	eps,
		float	bias_correction1,
		float	bias_correction2
	)

pure virtual

One fused Adam update over n parameters.

Parameters

bias_correction1	1 - beta1^t, computed once on the host per step.
bias_correction2	1 - beta2^t, likewise.

Note: Same per-element expression order as the pre-campaign AdamOptimizer host loop: m = b1*m + (1-b1)*g; v = b2*v + (1-b2)*g*g; p -= lr * (m/bc1) / (sqrt(v/bc2) + eps).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ add()

virtual void pulsatrix::DeviceBackend::add	(	const float *	a,
		const float *	b,
		float *	out,
		size_t	n
	)

pure virtual

Elementwise binary addition: out[i] = a[i] + b[i] for i in [0, n).

Parameters

a	First operand, must hold at least n floats.
b	Second operand, must hold at least n floats.
out	Output buffer, must hold at least n floats. May alias a or b for an in-place accumulation.
n	Number of elements.

Note: A separate method from elementwise() rather than extending ElementwiseOp with a binary case – see ElementwiseOp's own; . Added in Mission 3 (Phase 0 autograd) specifically because gradient accumulation (multiple children contributing to a shared parent's gradient) needs it; this is the resolution of the binary-op design decision deferred since Mission 0.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ add_channel_vector()

virtual void pulsatrix::DeviceBackend::add_channel_vector	(	const float *	in,
		const float *	vec,
		float *	out,
		size_t	n,
		size_t	c,
		size_t	inner
	)

pure virtual

out[i][ch][k] = in[i][ch][k] + vec[ch] over (n, c, inner). out may alias in.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ add_row_vector()

virtual void pulsatrix::DeviceBackend::add_row_vector	(	const float *	in,
		const float *	row,
		float *	out,
		size_t	rows,
		size_t	cols
	)

pure virtual

Broadcast row add: out[i][j] = in[i][j] + row[j] for a (rows x cols) matrix.

Note: out may alias in.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ aggregator_backward()

virtual void pulsatrix::DeviceBackend::aggregator_backward	(	const float *	x,
		const float *	mean_pow,
		const float *	grad_out,
		float *	grad_in,
		size_t	n,
		size_t	cols,
		float	p
	)

pure virtual

AggregatorModule input gradient, per column.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ aggregator_forward()

virtual void pulsatrix::DeviceBackend::aggregator_forward	(	const float *	x,
		float *	mean_pow,
		float *	out,
		size_t	n,
		size_t	cols,
		float	p
	)

pure virtual

AggregatorModule power mean over the leading axis of an (n, cols) input, per column.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ aggregator_lrp()

virtual void pulsatrix::DeviceBackend::aggregator_lrp	(	const float *	x,
		const float *	mean_pow,
		const float *	r_out,
		float *	r_in,
		size_t	n,
		size_t	cols,
		float	p,
		float	eps
	)

pure virtual

AggregatorModule epsilon rule, per column.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ allocate()

virtual void * pulsatrix::DeviceBackend::allocate ( size_t bytes )

pure virtual

Allocates a buffer of the given size.

Parameters

bytes Number of bytes to allocate. A request of 0 bytes returns nullptr by convention (not an error) — there is nothing to allocate.

Returns: Pointer to the allocated buffer, or nullptr iff bytes == 0.

Exceptions

std::runtime_error if a nonzero-size allocation fails. Never silently returns nullptr for a nonzero request.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ avg_pool_backward()

virtual void pulsatrix::DeviceBackend::avg_pool_backward	(	const float *	grad_out,
		float *	grad_in,
		size_t	planes,
		size_t	h,
		size_t	w,
		size_t	kh,
		size_t	kw
	)

pure virtual

Spreads grad_out / (kh*kw) over each window; grad_in must be zeroed by the caller.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ avg_pool_forward()

virtual void pulsatrix::DeviceBackend::avg_pool_forward	(	const float *	in,
		float *	out,
		size_t	planes,
		size_t	h,
		size_t	w,
		size_t	kh,
		size_t	kw
	)

pure virtual

Non-overlapping average pool over planes of (h, w).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ axpby()

virtual void pulsatrix::DeviceBackend::axpby	(	float	alpha,
		const float *	x,
		float	beta,
		const float *	y,
		float *	out,
		size_t	n
	)

pure virtual

out[i] = alpha * x[i] + beta * y[i]. out may alias x or y.

Note: beta == 0 does not read y (BLAS convention), so out = alpha * x exactly even where y holds inf/NaN – otherwise 0 * inf would turn a scale-only call into NaN.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ batch_norm_backward()

virtual void pulsatrix::DeviceBackend::batch_norm_backward	(	const float *	grad_out,
		const float *	gamma,
		const float *	xhat,
		const float *	channel_std,
		float *	grad_in,
		float *	gamma_grad,
		float *	beta_grad,
		size_t	n,
		size_t	c,
		size_t	spatial
	)

pure virtual

BatchNorm input gradient plus this call's gamma/beta gradients (overwritten, per channel).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ batch_norm_eval_backward()

virtual void pulsatrix::DeviceBackend::batch_norm_eval_backward	(	const float *	grad_out,
		const float *	gamma,
		const float *	xhat,
		const float *	channel_std,
		float *	grad_in,
		float *	gamma_grad,
		float *	beta_grad,
		size_t	n,
		size_t	c,
		size_t	spatial
	)

pure virtual

Eval-mode BatchNorm gradient: grad_out * gamma / std, plus gamma/beta gradients (overwritten, per channel). FND-5.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ batch_norm_eval_forward()

virtual void pulsatrix::DeviceBackend::batch_norm_eval_forward	(	const float *	in,
		const float *	gamma,
		const float *	beta,
		const float *	running_mean,
		const float *	running_var,
		float *	xhat,
		float *	out,
		float *	channel_std,
		size_t	n,
		size_t	c,
		size_t	spatial,
		float	eps
	)

pure virtual

Eval-mode BatchNorm from the running statistics: a per-channel affine map. FND-5.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ batch_norm_forward()

virtual void pulsatrix::DeviceBackend::batch_norm_forward	(	const float *	in,
		const float *	gamma,
		const float *	beta,
		float *	xhat,
		float *	out,
		float *	channel_std,
		size_t	n,
		size_t	c,
		size_t	spatial,
		float	eps
	)

pure virtual

BatchNorm over (n, spatial) per channel of (n, c, spatial) data.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ batch_norm_update_running()

virtual void pulsatrix::DeviceBackend::batch_norm_update_running	(	const float *	in,
		float *	running_mean,
		float *	running_var,
		size_t	n,
		size_t	c,
		size_t	spatial,
		float	momentum
	)

pure virtual

Folds this batch's per-channel mean and unbiased variance into the running ones (PyTorch's momentum rule; the variance is kept when a channel has one value). FND-5.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ bce_with_logits()

virtual void pulsatrix::DeviceBackend::bce_with_logits	(	const float *	logits,
		const float *	target,
		float *	out,
		size_t	n
	)

pure virtual

Per-element binary cross-entropy with logits: out[i] = max(x, 0) - x*y + log1p(exp(-|x|)), x = logits[i], y = target[i].

Note: Fused rather than composed from elementwise ops: this exact evaluation order is what BCEWithLogitsLoss has always computed, and no composition reproduces its rounding.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ bce_with_logits_grad()

virtual void pulsatrix::DeviceBackend::bce_with_logits_grad	(	const float *	logits,
		const float *	target,
		float *	grad,
		size_t	n,
		float	scale
	)

pure virtual

BCE-with-logits gradient: grad[i] = (sigmoid(x) - y) * scale, using the overflow-free sigmoid (exp(x) / (1 + exp(x)) for x < 0).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ col2im_add()

virtual void pulsatrix::DeviceBackend::col2im_add	(	const float *	col,
		float *	out,
		size_t	n,
		size_t	c,
		size_t	h,
		size_t	w,
		const ConvGeometry &	geometry
	)

pure virtual

Folds (n, c*kh*kw, out_h*out_w) patches back, adding into out (n, c, h, w).

Note: A gather: one GPU thread per output pixel sums its window contributions in the same order the CPU scatter loop adds them – deterministic, no atomics.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ column_sums()

virtual void pulsatrix::DeviceBackend::column_sums	(	const float *	in,
		float *	out,
		size_t	rows,
		size_t	cols,
		float	beta
	)

pure virtual

Per-column sum of a (rows x cols) row-major matrix: out[j] = beta*out[j] + sum_i in[i][j].

Note: Rows are summed in increasing i on every backend. out must not alias in.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ copy()

virtual void pulsatrix::DeviceBackend::copy	(	void *	dst,
		const void *	src,
		size_t	bytes,
		CopyDirection	dir
	)

pure virtual

Copies bytes between buffers.

Parameters

dst	Destination buffer, must be large enough to hold bytes.
src	Source buffer.
bytes	Number of bytes to copy.
dir	Direction of the copy (informs device-specific implementations which memory space each pointer lives in; CPUBackend ignores it).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ copy_2d()

virtual void pulsatrix::DeviceBackend::copy_2d	(	float *	dst,
		size_t	dst_stride,
		const float *	src,
		size_t	src_stride,
		size_t	rows,
		size_t	cols
	)

pure virtual

Strided 2-D copy: rows of cols floats from src (row stride src_stride) to dst (row stride dst_stride) – e.g. one timestep of an (N, L, D) sequence.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ device()

virtual DeviceType pulsatrix::DeviceBackend::device ( ) const

pure virtualnoexcept

Which device this backend's buffers reside on.

Note: Tensor's constructors that take no explicit DeviceType tag the Tensor with this, so a temporary allocated through a CUDA/HIP backend can no longer be silently labelled Cpu (the default-tag defect found by the GPU-native-kernels campaign recon: a mislabelled tensor makes Tensor pick HostToHost copies on device memory and lets host-only guards pass).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ dot()

virtual float pulsatrix::DeviceBackend::dot	(	const float *	a,
		const float *	b,
		size_t	n
	)

pure virtual

Dot product sum_i a[i]*b[i], returned to the host.

Note: Synchronizes. Fixed-order reduction on every backend, but GPU order differs from CPU's sequential sum, so CPU and GPU agree to rounding, not bitwise.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ dropout_forward()

virtual void pulsatrix::DeviceBackend::dropout_forward	(	const float *	in,
		float *	out,
		float *	mask,
		size_t	n,
		float	p,
		float	scale,
		uint64_t	seed,
		uint64_t	offset
	)

pure virtual

Inverted dropout with a counter-based RNG: element i is dropped iff uniform(seed, offset + i) < p; kept elements are scaled by scale.

Parameters

mask	Receives 1.0 (kept) or 0.0 (dropped) per element, for backward().

Note: uniform(seed, k) is splitmix64(seed + (k + 1) * golden_gamma), top 24 bits as a float in [0, 1). Stateless and identical on every backend, so a GPU mask is bit-identical to the CPU one for the same (seed, offset) – the property that lets Dropout be tested CPU-vs-GPU at all. A dropped element is written as 0 (a select, not in * 0), so an inf/NaN input there still yields 0.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ elementwise()

virtual void pulsatrix::DeviceBackend::elementwise	(	ElementwiseOp	op,
		const float *	in,
		float *	out,
		size_t	n
	)

pure virtual

Applies a unary elementwise operation to every element of a buffer.

Parameters

op	Operation to apply.
in	Input buffer, must hold at least n floats.
out	Output buffer, must hold at least n floats. May alias in for an in-place application.
n	Number of elements.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ elementwise_backward()

virtual void pulsatrix::DeviceBackend::elementwise_backward	(	ElementwiseOp	op,
		const float *	x,
		const float *	grad_out,
		float *	grad_in,
		size_t	n
	)

pure virtual

Activation backward: grad_in[i] = grad_out[i] * f'(x[i]), f = op, x = the forward input.

Note: Derivatives: Relu selects grad_out where x > 0, else 0 (0 at x == 0 and for a non-finite grad_out, matching ReluModule); Neg -1; Tanh 1 - tanh(x)^2; Sigmoid s(1 - s); Silu s + x*s*(1 - s), s = sigmoid(x); Exp exp(x). grad_in may alias grad_out or x.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ fill()

virtual void pulsatrix::DeviceBackend::fill	(	void *	ptr,
		float	value,
		size_t	n
	)

pure virtual

Fills every element of a float buffer with a constant value.

Parameters

ptr	Buffer to fill, must hold at least n floats.
value	Fill value.
n	Number of elements to fill.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ free()

virtual void pulsatrix::DeviceBackend::free ( void * ptr )

pure virtualnoexcept

Frees a buffer previously returned by allocate(). Safe to call with nullptr.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ gather_rows()

virtual void pulsatrix::DeviceBackend::gather_rows	(	const float *	table,
		const float *	indices,
		float *	out,
		size_t	count,
		size_t	dim
	)

pure virtual

out[i][:] = table[indices[i]][:] for count rows of width dim.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ gemm()

virtual void pulsatrix::DeviceBackend::gemm	(	const float *	a,
		const float *	b,
		float *	out,
		size_t	m,
		size_t	k,
		size_t	n
	)

pure virtual

Row-major matrix multiply: out = a * b.

Parameters

a	Pointer to A (m x k), row-major.
b	Pointer to B (k x n), row-major.
out	Pointer to the output buffer (m x n), row-major. Must be pre-allocated by the caller.
m	Rows of A / rows of out.
k	Columns of A / rows of B.
n	Columns of B / columns of out.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ gemm_ex()

virtual void pulsatrix::DeviceBackend::gemm_ex	(	const float *	a,
		bool	transpose_a,
		const float *	b,
		bool	transpose_b,
		float *	out,
		size_t	m,
		size_t	k,
		size_t	n,
		float	beta
	)

pure virtual

General row-major matrix multiply: out = op(A) * op(B) + beta * out.

Parameters

a	A, stored (m x k) row-major, or (k x m) when transpose_a.
transpose_a	Use A^T.
b	B, stored (k x n) row-major, or (n x k) when transpose_b.
transpose_b	Use B^T.
out	(m x n) row-major. Read only when beta != 0 (beta == 0 overwrites, so out may hold garbage). Must not alias a or b.
beta	Scale on the existing out; 1 accumulates (gradient accumulation).

Note: Replaces the explicit host-side transpose() copies modules built to feed gemm().

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ group_norm_backward()

virtual void pulsatrix::DeviceBackend::group_norm_backward	(	const float *	grad_out,
		const float *	gamma,
		const float *	xhat,
		const float *	group_std,
		float *	grad_in,
		float *	gamma_grad,
		float *	beta_grad,
		size_t	n,
		size_t	c,
		size_t	spatial,
		size_t	num_groups
	)

pure virtual

GroupNorm input gradient plus this call's gamma/beta gradients (overwritten, per channel).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ group_norm_forward()

virtual void pulsatrix::DeviceBackend::group_norm_forward	(	const float *	in,
		const float *	gamma,
		const float *	beta,
		float *	xhat,
		float *	out,
		float *	group_std,
		size_t	n,
		size_t	c,
		size_t	spatial,
		size_t	num_groups,
		float	eps
	)

pure virtual

GroupNorm per (example, group) of (n, c, spatial) data; group_std is (n, num_groups).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ gru_lrp_hprev()

virtual void pulsatrix::DeviceBackend::gru_lrp_hprev	(	const float *	h_prev,
		const float *	w_hn,
		const float *	hn,
		const float *	r_term_b,
		const float *	direct,
		float *	r_hprev,
		size_t	rows,
		size_t	hidden,
		float	eps
	)

pure virtual

GRU's R_hprev for (rows, hidden): the recurrent epsilon-rule sum through W_hn, with each element's direct term inserted where the original loop added it.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ im2col()

virtual void pulsatrix::DeviceBackend::im2col	(	const float *	in,
		float *	col,
		size_t	n,
		size_t	c,
		size_t	h,
		size_t	w,
		const ConvGeometry &	geometry
	)

pure virtual

Unfolds (n, c, h, w) into (n, c*kh*kw, out_h*out_w) patches, with out_h = (h + 2*pad_h - kh) / stride_h + 1 (likewise out_w). Taps that fall in the zero padding read 0.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ layer_norm_backward()

virtual void pulsatrix::DeviceBackend::layer_norm_backward	(	const float *	grad_out,
		const float *	gamma,
		const float *	xhat,
		const float *	row_std,
		float *	grad_in,
		size_t	rows,
		size_t	cols
	)

pure virtual

LayerNorm input gradient per row, from the cached xhat and per-row std.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ layer_norm_forward()

virtual void pulsatrix::DeviceBackend::layer_norm_forward	(	const float *	in,
		const float *	gamma,
		const float *	beta,
		float *	xhat,
		float *	out,
		float *	row_std,
		size_t	rows,
		size_t	cols,
		float	eps
	)

pure virtual

LayerNorm forward per row: xhat = (x - mean)/sqrt(var + eps), out = gamma*xhat + beta.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ logic_pointwise()

virtual void pulsatrix::DeviceBackend::logic_pointwise	(	LogicOp	op,
		int	norm,
		const float *	a,
		const float *	b,
		const float *	g_or_r,
		const float *	y,
		float *	out_a,
		float *	out_b,
		size_t	n,
		float	eps
	)

pure virtual

One elementwise pass of Conjunction/Disjunction for operands a, b.

Parameters

g_or_r	Upstream gradient (Backward) or relevance (Lrp); unused by Forward.
y	Cached forward output (Lrp only).
out_a	Forward: the output. Backward/Lrp: a's gradient/relevance.
out_b	Backward/Lrp: b's gradient/relevance; unused by Forward.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ logsumexp_rows()

virtual void pulsatrix::DeviceBackend::logsumexp_rows	(	const float *	in,
		float *	out,
		size_t	rows,
		size_t	cols
	)

pure virtual

Per-row log-sum-exp, max-subtracted: out[i] = log sum_j exp(in[i][j]).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ lrp_avg_pool()

virtual void pulsatrix::DeviceBackend::lrp_avg_pool	(	const float *	x,
		const float *	r,
		float *	r_in,
		size_t	planes,
		size_t	h,
		size_t	w,
		size_t	kh,
		size_t	kw,
		float	eps
	)

pure virtual

AvgPool2D epsilon rule; r_in must be zeroed by the caller.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ lrp_bilinear_elementwise()

virtual void pulsatrix::DeviceBackend::lrp_bilinear_elementwise	(	const float *	a,
		const float *	b,
		const float *	r,
		float *	r_out,
		size_t	n,
		float	eps
	)

pure virtual

Eq. 15 for an elementwise product c = a*b: r_out = (a b / (2c + eps sign c)) r (same for both).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ lrp_bilinear_matmul()

virtual void pulsatrix::DeviceBackend::lrp_bilinear_matmul	(	const float *	a,
		const float *	b,
		const float *	o,
		const float *	r_o,
		float *	r_a,
		float *	r_b,
		size_t	slices,
		size_t	m,
		size_t	p,
		size_t	q,
		float	eps,
		bool	b_transposed
	)

pure virtual

Eq. 15 for slices independent matmuls O = A @ B (A (M x P), B (P x Q), O and r_o (M x Q)).

Parameters

b_transposed B is stored as B^T (Q x P); r_b is then written in that same layout.

Note: r_a and r_b are overwritten (not accumulated into).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ lrp_conv()

virtual void pulsatrix::DeviceBackend::lrp_conv	(	const float *	col,
		const float *	kernel,
		const float *	pre_bias,
		const float *	r,
		float *	r_col,
		size_t	n,
		size_t	out_channels,
		size_t	p,
		size_t	q,
		float	eps
	)

pure virtual

Conv2D epsilon rule in patch space: r_col (n, p, q) from the cached patches, the kernel (out_channels, p) and the pre-bias outputs (n, out_channels, q).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ lrp_linear()

virtual void pulsatrix::DeviceBackend::lrp_linear	(	const float *	x,
		const float *	w,
		const float *	z,
		const float *	r,
		float *	r_in,
		size_t	rows,
		size_t	in_features,
		size_t	out_features,
		float	eps
	)

pure virtual

LinearModule epsilon rule: r_in[n][i] = sum_j (x[n][i] w[i][j] / stab(z[n][j])) r[n][j].

Parameters

z	(N, out) pre-bias outputs; w (in, out); x, r_in (N, in); r (N, out).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ lrp_residual_split()

virtual void pulsatrix::DeviceBackend::lrp_residual_split	(	const float *	a,
		const float *	b,
		const float *	r,
		float *	r_a,
		float *	r_b,
		size_t	n,
		float	eps
	)

pure virtual

Epsilon split of a residual sum y = a + b: r_a = (a / stab(y)) r, r_b = (b / stab(y)) r.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ lrp_rope()

virtual void pulsatrix::DeviceBackend::lrp_rope	(	const float *	x,
		const float *	y,
		const float *	r,
		const float *	cos_table,
		const float *	sin_table,
		float *	r_in,
		size_t	slices,
		size_t	seq_len,
		size_t	head_dim,
		float	eps
	)

pure virtual

RoPEModule epsilon rule over (slices, seq_len, head_dim), tables as for rope_rotate.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ lrp_softmax_rows()

virtual void pulsatrix::DeviceBackend::lrp_softmax_rows	(	const float *	x,
		const float *	y,
		const float *	r,
		float *	r_in,
		size_t	rows,
		size_t	cols
	)

pure virtual

SoftmaxModule rule per row: r_in = x * (r - y * sum(r)).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ lrp_stabilized_divide()

virtual void pulsatrix::DeviceBackend::lrp_stabilized_divide	(	const float *	r,
		const float *	denom,
		const float *	gate,
		float *	out,
		size_t	n,
		float	eps,
		LrpGate	gate_mode
	)

pure virtual

Gated stabilized division, the one non-gemm step of the affine LRP rules: out[i] = passes(gate[i]) ? r[i] / (denom[i] + eps sign(denom[i])) : 0, sign(0) = +1.

Parameters

gate	Read only when gate_mode != LrpGate::None (may then be nullptr).

Note: out may alias r or denom.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ max_pool_forward()

virtual void pulsatrix::DeviceBackend::max_pool_forward	(	const float *	in,
		float *	out,
		float *	argmax,
		size_t	planes,
		size_t	h,
		size_t	w,
		size_t	kh,
		size_t	kw
	)

pure virtual

Non-overlapping max pool over planes of (h, w); argmax = flat in-plane index (first max wins).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ max_unpool()

virtual void pulsatrix::DeviceBackend::max_unpool	(	const float *	src,
		const float *	argmax,
		float *	dst,
		size_t	planes,
		size_t	h,
		size_t	w,
		size_t	kh,
		size_t	kw
	)

pure virtual

dst[plane][argmax] = src for every pooled element; dst must be zeroed by the caller.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ mul()

virtual void pulsatrix::DeviceBackend::mul	(	const float *	a,
		const float *	b,
		float *	out,
		size_t	n
	)

pure virtual

Elementwise binary (Hadamard) multiplication: out[i] = a[i] * b[i] for i in [0, n).

Parameters

a	First operand, must hold at least n floats.
b	Second operand, must hold at least n floats.
out	Output buffer, must hold at least n floats. May alias a or b for an in-place application.
n	Number of elements.

Note: Added in Phase 6's SwiGLU mission (mission_swiglu.md) – the third consumer needing a Hadamard product via a raw host loop (after LSTMModule's/GRUModule's gate arithmetic), the trigger point the Risk Register named for finally adding this primitive properly instead of a fourth raw loop. LSTMModule/GRUModule's existing raw loops are not retrofitted to use it – no behavior change needed there, logged as a low-priority future cleanup only.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ permute_0213()

virtual void pulsatrix::DeviceBackend::permute_0213	(	const float *	in,
		float *	out,
		size_t	d0,
		size_t	d1,
		size_t	d2,
		size_t	d3
	)

pure virtual

Swaps the middle two axes: in (d0, d1, d2, d3) -> out (d0, d2, d1, d3).

Note: Attention's head split ((N, L, H, D) -> (N, H, L, D)) and merge (the reverse) are both this permutation. out must not alias in.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ recurrent_cell()

virtual void pulsatrix::DeviceBackend::recurrent_cell	(	RecurrentCellOp	op,
		const RecurrentCellArgs &	args,
		size_t	n
	)

pure virtual

One fused recurrent-cell pass over n elements (see RecurrentCellOp for slots).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ rl_rows()

virtual void pulsatrix::DeviceBackend::rl_rows	(	RlRowOp	op,
		const RlRowArgs &	args
	)

pure virtual

One fused RL loss / target / Polyak pass (see RlRowOp for lanes and slots).

Note: One lane per row: a row's softmax, argmax and gradient writes are owned by its lane and walk the columns in the original loop order. Per-row loss terms are reduced by the caller with column_sums, which adds rows in increasing order like the original loop.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ rms_norm_backward()

virtual void pulsatrix::DeviceBackend::rms_norm_backward	(	const float *	grad_out,
		const float *	gamma,
		const float *	in,
		const float *	row_rms,
		float *	grad_in,
		float *	gamma_terms,
		size_t	rows,
		size_t	cols
	)

pure virtual

RMSNorm input gradient per row, plus gamma_terms[r][i] = grad_out * x / rms – the per-row contributions column_sums then reduces into gamma's gradient.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ rms_norm_forward()

virtual void pulsatrix::DeviceBackend::rms_norm_forward	(	const float *	in,
		const float *	gamma,
		float *	out,
		float *	row_rms,
		size_t	rows,
		size_t	cols,
		float	eps
	)

pure virtual

RMSNorm forward per row: out = gamma * x / sqrt(mean(x^2) + eps).

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ rope_rotate()

virtual void pulsatrix::DeviceBackend::rope_rotate	(	const float *	in,
		const float *	cos_table,
		const float *	sin_table,
		float *	out,
		size_t	num_slices,
		size_t	seq_len,
		size_t	head_dim,
		bool	inverse
	)

pure virtual

Rotary position embedding over (num_slices, seq_len, head_dim) data.

Parameters

cos_table,sin_table	(seq_len, head_dim/2) per-position rotation tables.
inverse	false: forward rotation; true: its transpose (RoPE's backward).

Note: out must not alias in.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ scatter_add_rows()

virtual void pulsatrix::DeviceBackend::scatter_add_rows	(	const float *	src,
		const float *	indices,
		float *	table,
		size_t	count,
		size_t	dim
	)

pure virtual

table[indices[i]][:] += src[i][:] for i = 0..count-1, in increasing i.

Note: Deterministic: the GPU kernel runs one thread per column and walks i in order – repeated indices accumulate in the same order as the CPU, no atomics.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ softmax_rows()

virtual void pulsatrix::DeviceBackend::softmax_rows	(	const float *	in,
		float *	out,
		size_t	rows,
		size_t	cols
	)

pure virtual

Row-wise softmax of a (rows x cols) matrix, max-subtracted. out may alias in.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ softmax_rows_backward()

virtual void pulsatrix::DeviceBackend::softmax_rows_backward	(	const float *	y,
		const float *	dy,
		float *	dx,
		size_t	rows,
		size_t	cols
	)

pure virtual

Softmax backward from its output y: dx[i][j] = y[i][j] * (dy[i][j] - sum_k y[i][k]*dy[i][k]).

Note: dx must not alias y or dy.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ ssm_pass()

virtual void pulsatrix::DeviceBackend::ssm_pass	(	SsmPassOp	op,
		const SsmPassArgs &	args
	)

pure virtual

One fused Mamba / RWKV / RetNet pass (see SsmPassOp for lanes and slots).

Note: Recurrences run one lane per independent (batch, channel[, state]) sequence, walking time in order inside the lane – parallel over lanes, sequential over time, the CPU's order. Every reduction is owned by one lane and summed in the original loop order.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ sum()

virtual float pulsatrix::DeviceBackend::sum	(	const float *	in,
		size_t	n
	)

pure virtual

sum_i in[i], returned to the host. Same reduction order as dot(). Synchronizes.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ tanh_gaussian_backward()

virtual void pulsatrix::DeviceBackend::tanh_gaussian_backward	(	const float *	action,
		const float *	std_cache,
		const float *	eps,
		const float *	grad_action,
		const float *	grad_log_prob,
		float *	grad_mean,
		float *	grad_log_std,
		size_t	n,
		float	stabilizer
	)

pure virtual

TanhGaussianPolicy gradients w.r.t. mean and log_std, per element.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ tanh_gaussian_forward()

virtual void pulsatrix::DeviceBackend::tanh_gaussian_forward	(	const float *	mean,
		const float *	log_std,
		const float *	eps,
		float *	action,
		float *	std_cache,
		float *	log_prob,
		size_t	rows,
		size_t	cols,
		float	stabilizer,
		double	half_log_two_pi
	)

pure virtual

TanhGaussianPolicy sampling per (rows, cols) row: action = tanh(mean + exp(log_std)*eps), std_cache = exp(log_std), log_prob[r] accumulated in double.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

◆ top_k_rows()

virtual void pulsatrix::DeviceBackend::top_k_rows	(	const float *	in,
		float *	values,
		float *	indices,
		size_t	rows,
		size_t	cols,
		size_t	k,
		bool	largest
	)

pure virtual

Per row of a row-major (rows, cols) matrix: the k largest (or smallest) values in rank order into values (rows, k), and their column indices into indices (rows, k) as whole-number floats.

Note: Order: NaN ranks above every number; equal values keep the lower column index first. One lane per row, pure selection: every backend's output is bit-identical.; Preconditions, validated by the caller (top_k()): 1 <= k <= cols, cols <= 2^24.

Implemented in pulsatrix::CPUBackend, pulsatrix::CUDABackend, and pulsatrix::HIPBackend.

The documentation for this class was generated from the following file:

include/pulsatrix/device_backend.hpp

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ ~DeviceBackend()

Member Function Documentation

◆ accumulate_rows()

◆ adam_step()

◆ add()

◆ add_channel_vector()

◆ add_row_vector()

◆ aggregator_backward()

◆ aggregator_forward()

◆ aggregator_lrp()

◆ allocate()

◆ avg_pool_backward()

◆ avg_pool_forward()

◆ axpby()

◆ batch_norm_backward()

◆ batch_norm_eval_backward()

◆ batch_norm_eval_forward()

◆ batch_norm_forward()

◆ batch_norm_update_running()

◆ bce_with_logits()

◆ bce_with_logits_grad()

◆ col2im_add()

◆ column_sums()

◆ copy()

◆ copy_2d()

◆ device()

◆ dot()

◆ dropout_forward()

◆ elementwise()

◆ elementwise_backward()

◆ fill()

◆ free()

◆ gather_rows()

◆ gemm()

◆ gemm_ex()

◆ group_norm_backward()

◆ group_norm_forward()

◆ gru_lrp_hprev()

◆ im2col()

◆ layer_norm_backward()

◆ layer_norm_forward()

◆ logic_pointwise()

◆ logsumexp_rows()

◆ lrp_avg_pool()

◆ lrp_bilinear_elementwise()

◆ lrp_bilinear_matmul()

◆ lrp_conv()

◆ lrp_linear()

◆ lrp_residual_split()

◆ lrp_rope()

◆ lrp_softmax_rows()

◆ lrp_stabilized_divide()

◆ max_pool_forward()

◆ max_unpool()

◆ mul()

◆ permute_0213()

◆ recurrent_cell()

◆ rl_rows()

◆ rms_norm_backward()

◆ rms_norm_forward()

◆ rope_rotate()

◆ scatter_add_rows()

◆ softmax_rows()

◆ softmax_rows_backward()

◆ ssm_pass()

◆ sum()

◆ tanh_gaussian_backward()

◆ tanh_gaussian_forward()

◆ top_k_rows()
